Gas distribution station Riga-1


2006 – 2007


Latvijas Gaze Jsc

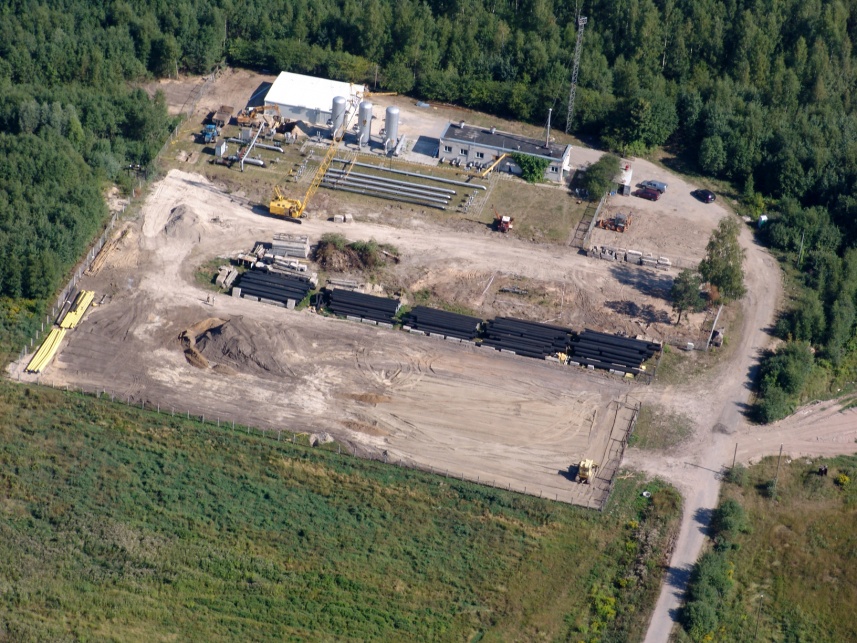

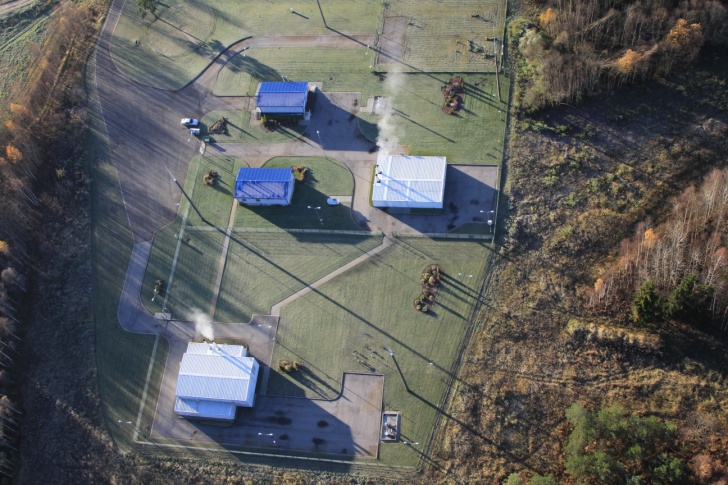

GDS Riga-1 is pre-fabricated skid mounted gas distribution station with 2 outlets (6 bar and 12 bar), with total capacity 175 000 m3/h. All equipment units are placed in container type building 12,2х16,1х2,9m. The container includes 5 separated and isolated rooms:

  • Process room;
  • Odorization unit;
  • Boiler room;
  • Power supply equipment room;
  • Diesel generator.

Condensate collection takes place in 10 m3 underground tank. GDS operator’s building and odorizer storage (60 tanks, 200l each) is located separately from the process equipment container. For operator’s needs on site arranged artesian well and sanitary sewer system. The design provides for standalone diesel generator 60 kW. Station’s security is provided by perimeter alarm and CCTV systems as well as area lighting.

Scope of work:

  • Design development (concept + detailed);
  • Field supervision.
